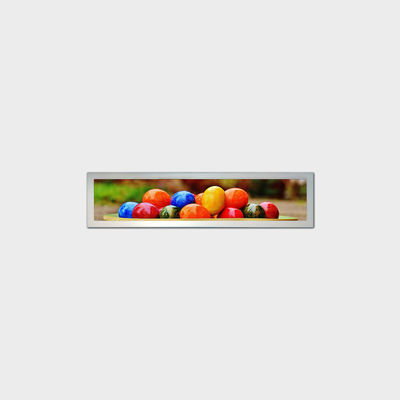

13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Nama | Tampilan LCD Tipe Bar TFT | Ukuran panel | 13.8" |
|---|---|---|---|
| Resolusi | 1920*358 | Kecerahan | 700 (Tip.) |
| Suhu operasi. | 0 ~ 50 ℃ | Area aktif | 344.16*61.17mm |
| Garis Besar Dimensi | 371.5*90.1*12.7mm | ||
| Menyoroti | 13.8 inch bar type LCD display,smart home touch panel display,bar type cutting display panel |
||
Deskripsi Produk
13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0138TQ01-C070
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 13.8 inch |
| Model | LCMA-RX0138TQ01-C070 |
| Brightness | 700nits |
| Resolution | 1920*358 |
| Active Area | 344.16*61.17mm |
| Overall Size | 371.5*90.1*12.7mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
