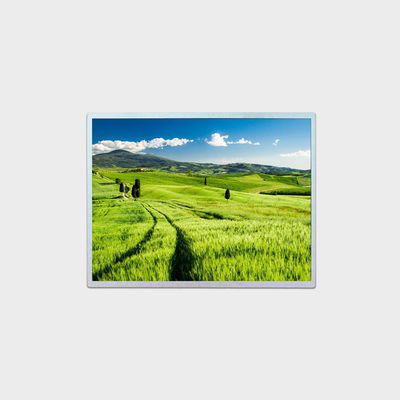

10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Ukuran panel | 10.4" | Resolusi | 1024*768 |
|---|---|---|---|
| Kecerahan | 1500 (Tip.) | rasio aspek | 16:9 |
| Area aktif | 210.43*157.824mm | Garis Besar Dimensi | 227*175.8*9.2mm |
| Menyoroti | 10.4 inch TFT LCD display,1500nits brightness LCD screen,outdoor vending machine display |
||
Deskripsi Produk
10.4 inch TFT LCD Display Support 1500nits Brightness Outdoor Vending Machine
High Brightness LCD Product Features
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C-80°C
- High shock resistance and high stability
High Brightness LCD Product Applications
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data Sheet
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.4 |
| Model | LCMA-RX0104GR02-C150 |
| Brightness | 1500 |
| Resolution | 1024*768 |
| Active Area | 210.43*157.824 |
| Overall Size | 227*175.8*9.2 |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 900:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -30-80℃ |
