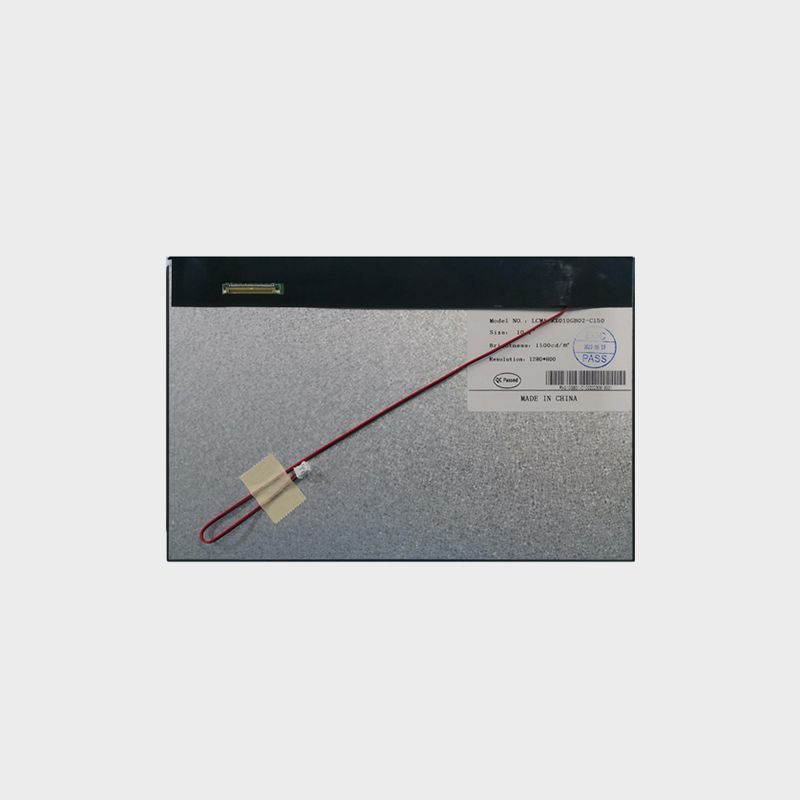

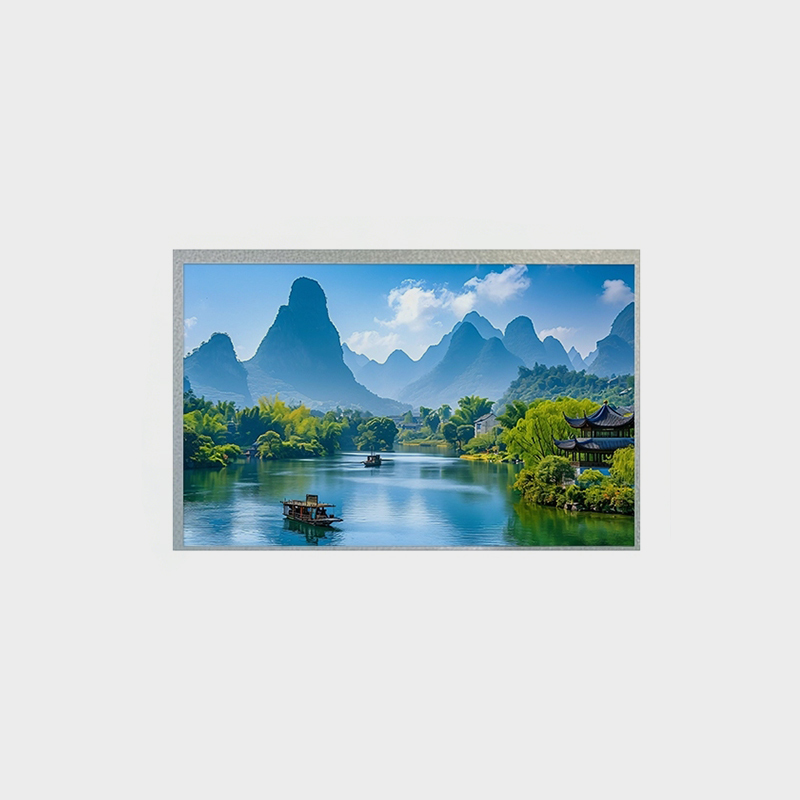

10.1 Inch TFT LCD HMI Solution With 1500 Brightness Wide Temperature
Detail produk
| Nama | 10.1 inci TFT LCD Display | Ukuran Panel | 10.1" |
|---|---|---|---|
| Resolusi | 1280*800 | Kecerahan | 1500 (Tip.) |
| Rasio Aspek | 16:9 | Daerah Aktif | Ukuran 216,96*135,6 mm |
| Dimensi Garis Besar | 228.5*149*4.45mm | Antarmuka | LVDS (1 bab, 8-bit) |
| Menyoroti | 10.1 inch TFT LCD HMI display,high brightness LCD display with warranty,wide temperature TFT LCD solution |
||
Deskripsi Produk
10.1 Inch TFT LCD HMI Solution With 1500 Brightness Wide Temperature
Product Advantage
- Brightness customization 700-5000cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime, 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range up to -30°C - 80°C
- High shock resistance and high stability
Product Application
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0101GB02-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 10.1 |
| Model | LCMA-RX0101GB02-C150 |
| Brightness | 1500nits (Support Customization) |
| Resolution | 1280*800 (Standard) |
| Active Area | 216.96*135.6mm |
| Overall Size | 228.5*149*4.45mm |
| Viewing Angle | 80/80/80/80 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20~70℃ |
