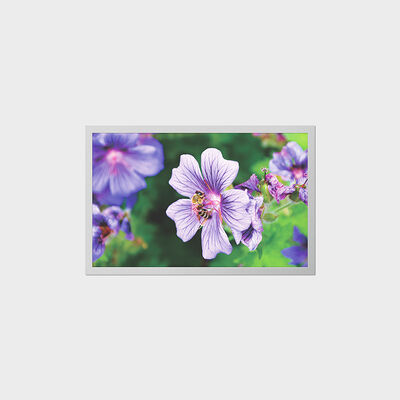

12.1 inch TFT LCD Standard Solution For Industrial Application With Original Glass
Detail produk
| Nama | Layar LCD TFT 12,1 inci | Ukuran Panel | 12,1 inci |
|---|---|---|---|
| Resolusi | 1280*800 | Kecerahan | 1500 (Tip.) |
| Rasio Aspek | 16:9 | Daerah Aktif | 261.12*163.2mm |
| Dimensi Garis Besar | 277.7*180.6*9.5mm | Antarmuka | LVDS (1 bab, 8-bit) |
Deskripsi Produk
12.1 inch TFT LCD Standard Solution For Industrial Application With Original Glass
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending HMI Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0121GR03-C150
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 12.1 inch |
| Model | LCMA-RX0121GR03-C150 |
| Brightness | 1500 nits (Support Customization) |
| Resolution | 1280 * 800 |
| Active Area | 261.12 * 163.2 mm |
| Overall Size | 277.7 * 180.6 * 9.5 mm |
| Viewing Angle | 85/85/85/85 |
| Interface Definition | eDP (2 Lanes) |
| Backlight Type | WLED |
| Contrast Ratio | 1200:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
