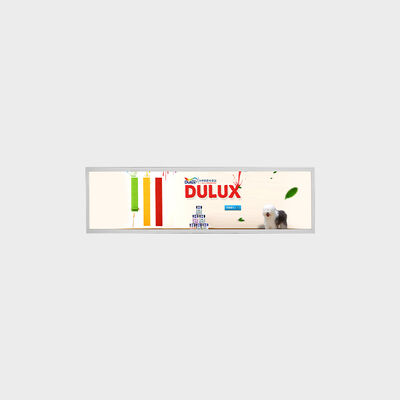

Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application

  • Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
  • Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
Tempat asal SHENZHEN
Nama merek ROGIN
Nomor model LCMA-RX0194TA01-C070
Kuantitas min Order 5
Harga Price is negotiable.
Kemasan rincian Karton atau kotak kayu
Waktu pengiriman 6-8 minggu
Syarat-syarat pembayaran T/T,L/C
Menyediakan kemampuan Kecukupan Spot
Detail produk
Nama Tipe Bar LCD Ukuran Panel 19,4"
Resolusi 1920*519 Kecerahan 700 (Tip.)
Suhu Operasional 0~50 ℃ Daerah Aktif 476.6*129mm
Dimensi Garis Besar 503.2*156.2*14.5mm Antarmuka LVDS (2 bab, 8-bit)
Menyoroti

Bar-Type TFT LCD automotive display

,

Vehicle instrument cluster LCD module

,

Bar-Type LCD for car dashboard
Tinggalkan pesan
Deskripsi Produk
Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application
High-performance bar-type TFT LCD display module specifically designed for automotive instrument clusters and vehicle applications, offering exceptional reliability and customization options.
Product Advantages
  • Advanced manufacturing with 3 cutting machines and 2 production lines supporting lengths up to 1.7m (75 inch cutting)
  • Precision cutting technology ensuring high yield and dimensional accuracy
  • High reliability with identical features to original equipment panels
  • Superior anti-vibration performance for automotive environments
  • Customizable brightness ranging from 500-2500 nits
  • Extended lifespan: 50,000 hours typical, up to 80,000 hours maximum
Product Applications
  • Commercial signage: Advertising displays and price shelves
  • Public transportation: Bus, metro, and light rail billboards
  • Guidance boards and elevator advertising displays
  • Financial services: Bank call notice boards
  • Identification cards and bus stop/station displays
  • Taxi, bus, and subway advertising boards
Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 0 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 1 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 2 Bar-Type TFT LCD Display Module for Automotive Instrument Cluster & Vehicle Application 3
Technical Specifications
Model: LCMA-RX0194TA01-C070
Brand Rogin
Series Cutting (Bar) Type LCD Display
Panel Size 19.4 inch
Brightness 700 nits (Support customized)
Resolution 1920 × 519
Active Area 476.6 × 129 mm
Overall Size 503.2 × 156.2 × 14.5 mm
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 3000:1
Touch Panel Without
Operating Temperature 0~50 ℃
